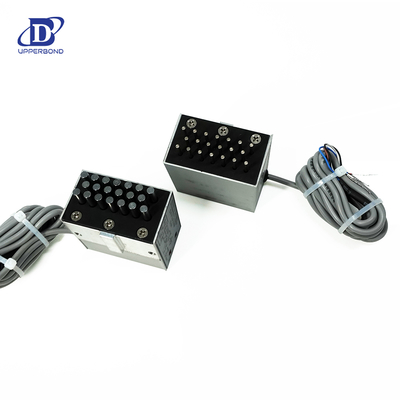

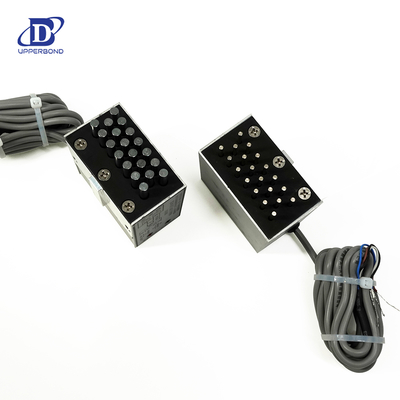

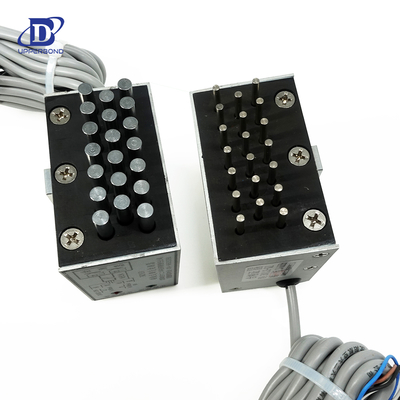

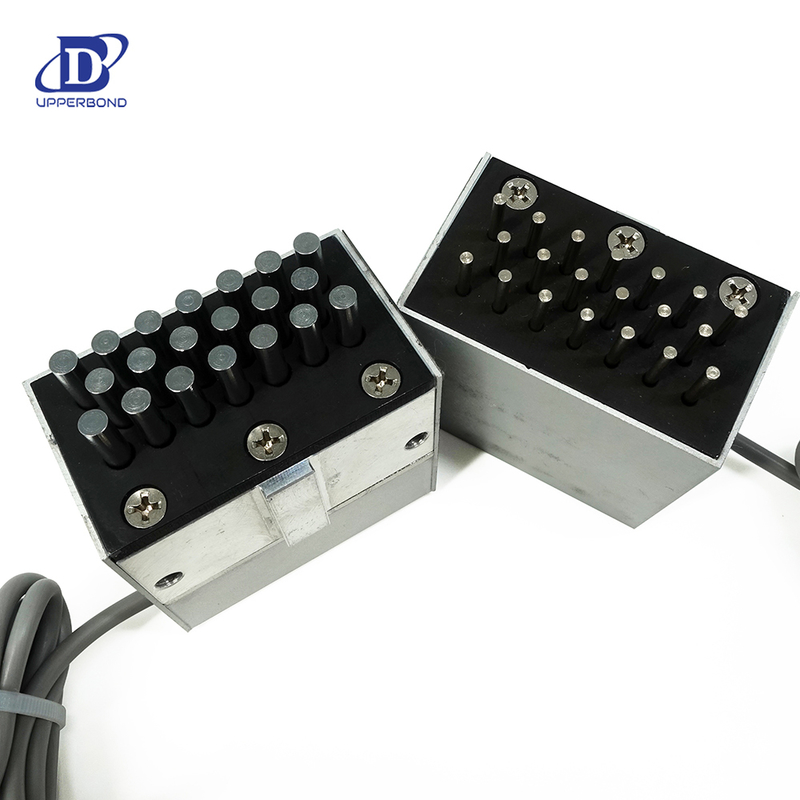

HLP2 Cigarette Packer Detector for King Slim Nano Size Tobacco Machines

Name: HLP2 Cigarette Packer Detector for King Slim Nano Size Tobacco Machines
Brand: HK UPPERBOND INDUSTRIAL LIMITED
SKU: packer
Price: 4.90 USD
Availability: InStock

Brand Name:	Upperbond
Model Number:	packer
MOQ:	1 set
Price:	Negotiable
Delivery Time:	5-8days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

Detector

Machine Model:

HLP2

Size:

King Size/slim Size/Nano Size

Working Frequency:

5HZ

Certificate:

CE,ISO

Output Type:

NPN

MOQ:

1 SET

Packing:

Carton

Function:

Defective Cigarette Detect

Apply For:

Cigarette Making Machine

Packaging Details:

carton

Supply Ability:

50000pcs/month

Highlight:

HLP2 cigarette packer detector

King Slim tobacco machine parts

Nano size cigarette packer detector

Product Description

Core functions and technical principles

Magnetoelectric displacement sensing array: equipped with 20 sets of high-sensitivity magneto electric converters (accuracy ± 0.05mm), it determines the density of tobacco by monitoring the magnetic field deformation at the end of the cigarette. The loose end causes magnetic field disturbance due to density decrease, triggering sensor signals.
Forked fiber optic probe:Transmitting end: Connect a high stability LED light source (wavelength 850nm) to illuminate the tobacco end face of the cigarette
Receiver: Capture the reflected light intensity and convert it into an electrical signal through a photodiode.Detection logic: The reflected light intensity at the end of a normal cigarette is stable; Loose ends experience increased scattering due to uneven surfaces, resulting in a significant decrease in reflected light intensity (compared to the preset threshold of ± 15%); The air filter rod has abnormal light intensity signal due to the lack of reflective filter material.

Product Features:

1	Working pressure	24VDC±10%
2	Working current	≤150mA
3	Output type	NPN
4	Working distance	1.5-2MM
5	Working frequency	5HZ
6	Instruction	LED light off, detected defective
7	Tempreture	-10 - 60℃
8	Humidity	≤ 80% RH

Product advantages

Zero error rejection rate: The dual signal cross validation mechanism avoids the loss of good products caused by single sensor misjudgment.
Efficiency improvement: Reduce manual inspection costs by 90%, defect response time<0.1 seconds, and avoid production line downtime losses.
Compliance assurance: Complies with ISO 12863 tobacco packaging quality standards and supports audit data export (CSV/PDF format).
Easy maintenance: modular design, sensor replacement takes ≤ 5 minutes; Fiber optic probe lifespan ≥ 20000 hours
