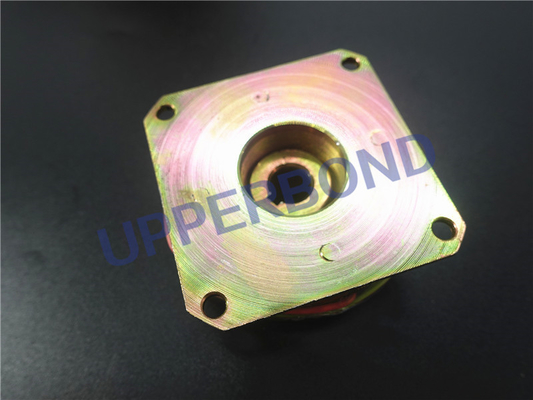

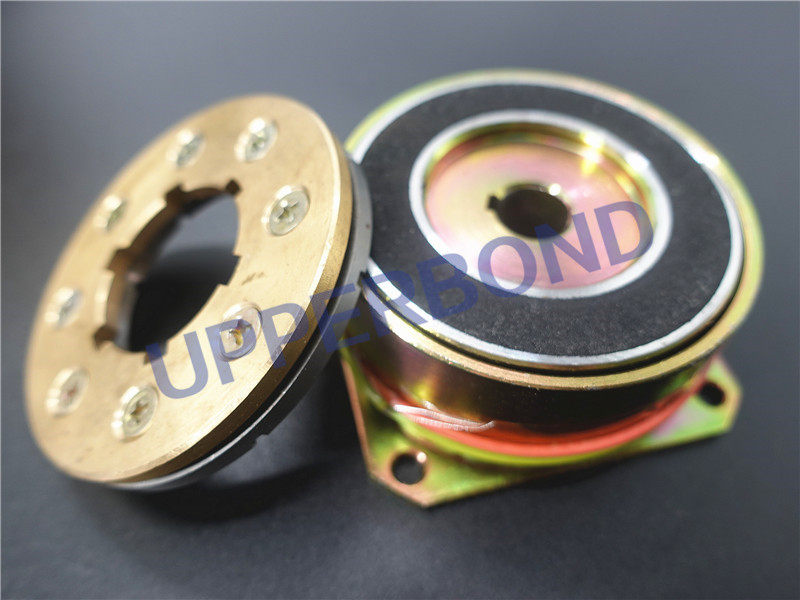

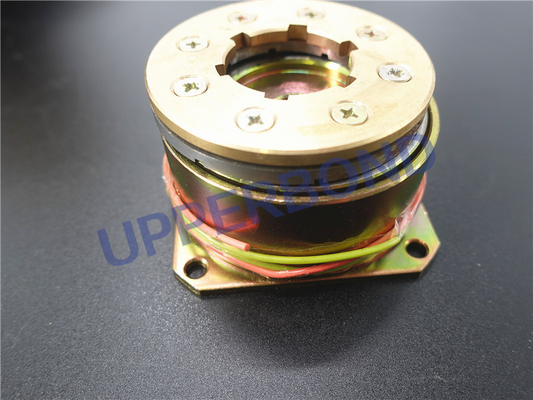

High Performance MK8 MK9 Cigarette Machine Parts Magnetic Drive Clutch

High Performance MK8 MK9 Cigarette Machine Parts Magnetic Drive Clutch

Electromagnetic Clutch:

Electromagnetic clutch is a electronic component of cigarette making/packing machines that operates electrically but transmit torque mechanically.

Electro-mechanical Clutch:

This is why they used to be referred to as electro-mechanical clutches. Over the years, EM became known as electromagnetic versus electro-mechanical, referring more about their actuation method versus physical operation. Since the clutches started becoming popular over 60 years ago, the variety of applications and clutch designs has increased dramatically, but the basic operation remains the same today.

Single-face clutches make up approximately 90% of all electromagnetic clutch sales.

Engagement:

When the clutch is actuated, current flows through the electromagnet producing a magnetic field. The rotor portion of the clutch becomes magnetized and sets up a magnetic loop that attracts the armature. The armature is pulled against the rotor and a frictional force is generated at contact. Within a relatively short time, the load is accelerated to match the speed of the rotor, thereby engaging the armature and the output hub of the clutch. In most instances, the rotor is constantly rotating with the input all the time.

Function:

Electromagnetic clutches are most suitable for remote operation since no mechanical linkages are required to control their engagement, providing fast, smooth operation. However, because the activation energy dissipates as heat in the electromagnetic actuator when the clutch is engaged, there is a risk of overheating. Consequently, the maximum operating temperature of the clutch is limited by the temperature rating of the insulation of the electromagnet. This is a major limitation. Another disadvantage is higher initial cost.

Additional Services:

For requirement of specific certification to meet import regulations of certain nations, please inform us before order to get products certified in case they are not yet.

Before business actually starts, we are always more than willing to send you samples(wear parts/ consumables/ spares / materials) for a quality test, if necessary.

You are always welcome to our office for a face to face talk, and also to our plants for an on-site inspection. Please inform us of your journey plan beforehand so that we could meet you at the airport and take you to plants.

We provide off-line engineering support for installation of complete machines if requested.
