Place of Origin: | China |
Brand Name: | Upperbond |
Certification: | CE, ISO |
Model Number: | Maker |
Minimum Order Quantity: | 2 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 10000 pcs/month |
Machine Models: | Protos, Passim, MK8, MK9, | Color: | Grey / Silver |
---|---|---|---|
Port Of Shipment: | Guangzhou, Shanghai | Cigarette Diameter: | 5.4mm - 8.0mm |
Machine Applicable: | Cigarette Maker | Condition: | Brand New |
High Light: | Kretek Hard Printer Mould Tray,Cigarette Packing Machine Mould Tray,Cigarette Packing Machine Accessories |

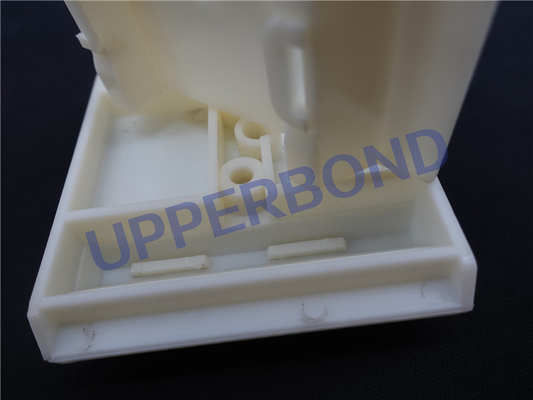

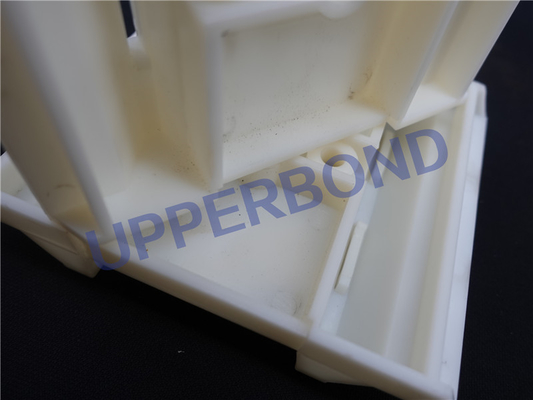

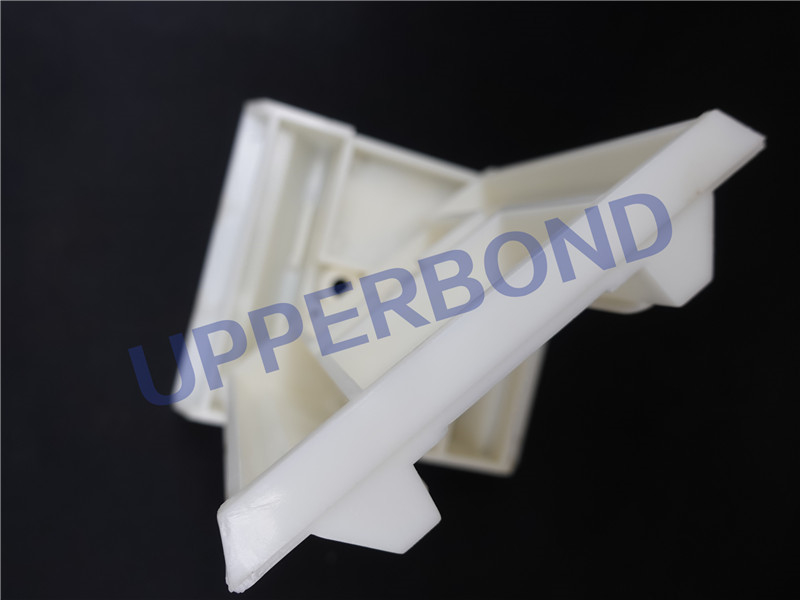

Regular Kretek Hard Printer Mould Tray Cigarette Packing Machine Parts
Cigarette Pack Pocket is a fast moving part of packing machine where printed hard cardboard paper will be folded into shape of cigarette packs.
Catalog Reference
Item | Catalog No. | Part No. | Qty. |
1 | YB43A 4.3.1-4 | locking nut | 2 |
2 | YB43A 4.3.2-8 | spacer | 1 |
3 | YB43A 4.3.1-7 | key | 1 |
4 | YB43A 4.4.1-23 | tension wheel shaft | 1 |
5 | YB43A 4.4.1-6 | press plate | 1 |
6 | YB43A 4.3.1-8 | locking screw | 2 |
7 | YB43A 4.4.1-15 | key | 1 |
8 | YB43A 4.4.1-14 | belt wheel | 1 |
9 | YB43A 4.4.1-2 | spring | 4 |
10 | YB43A 4.4.1-3 | Spring pin | 4 |
11 | YB43A 4.3.2-15 | regulating block | 2 |
12 | YB43A 4.3.1-43 | plug | 1 |
13 | YB43A 4.3.1-6 | graduation cam | 1 |
14 | YB43A 4.4.1-21 | bracket | 1 |
15 | YB43A 4.4.1-17 | tension wheel | 3 |
16 | YB43A 4.3.2-14 | guide tray | 36 |
17 | YB43A 4.4.1-4 | plate | 1 |
18 | YB43A 4.3.2-10 | toothed belt wheel | 1 |
19 | YB43A 4.3.2-6 | flange | 1 |
20 | YB43A 4.3.1-1 | shaft | 1 |
21 | YB43A 4.3.1-3 | nylon plug | 2 |
22 | YB43A 4.4.1-22 | tension wheel shaft | 2 |
23 | YB43A 4.4.1-20 | tension wheel | 2 |
24 | YB43A 4.3.2-3 | wheel shaft | 1 |
25 | YB43A 4.3.1-44 | bearing case | 1 |
26 | YB43A 4.4.1-1 | lock block | 1 |
27 | YB43A 4.4.1-5 | shaft | 2 |
28 | YB43A 4.3.2-16 | bearing case | 2 |
29 | YB43A 4.4.1-7 | support block | 1 |
30 | YB43A 4.3.1-5 | washer against slackness | 2 |
31 | YB43A 4.3.2-1 | flange | 24 |
32 | YB43A 4.4.1-11 | front shell | 1 |
33 | YB43A 4.3.2-4 | upper mover | 72 |
34 | YB43A 4.4.1-16 | cam | 1 |
35 | YB43A 4.3.2-2 | belt wheel | 1 |
36 | YB43A 4.3.2-5 | groove tray | 72 |
37 | YB43A 4.4.1-18 | tension wheel shaft | 1 |
38 | YB43A 4.3.2-11 | box eJector | 36 |
39 | YB43A 4.3.2-12 | pressedblock | 36 |
40 | YB43A 4.3.2-13 | guide plate | 36 |
41 | YB43A 4.4.1-8 | block | 1 |
42 | YB43A 4.3.2-9 | clamping plate | 1 |
43 | YB43A 4.3.1-45 | cover | 1 |
44 | YB43A 4.4.1-9 | cylinder | 1 |
45 | YB43A 4.4.1-12 | back shell | 1 |
46 | YB43A 4.4.1-10 | driving shaft | 1 |
47 | YB43A 4.4.1-24 | tension wheel pedestal | 1 |
48 | YB43A 4.4.1-13 | sleeve | 1 |
49 | YB43A 4.4.1-25 | tension wheel pedestal | 1 |
50 | YB43A 4.4.1-19 | tension wheel shaft | 1 |
