HK UPPERBOND INDUSTRIAL LIMITED
 |
| Place of Origin: | China |
| Brand Name: | Upperbond |
| Certification: | CE, ISO |
| Model Number: | Maker |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 10000 pcs/month |
| Material: | Treated Stainless Steel | Cutting Material: | Filter Side |
|---|---|---|---|
| Port Of Shipment: | Guangzhou, Shanghai | Cigarette Diameter: | 5.4mm - 8.0mm |
| Machine Models: | Protos, Passim, MK8, MK9, | Hardness: | Greatly Enhanced |
| High Light: | Cigarette Packing Machine Die Pocket,Cigarette Machinery Parts Die Pocket |
||

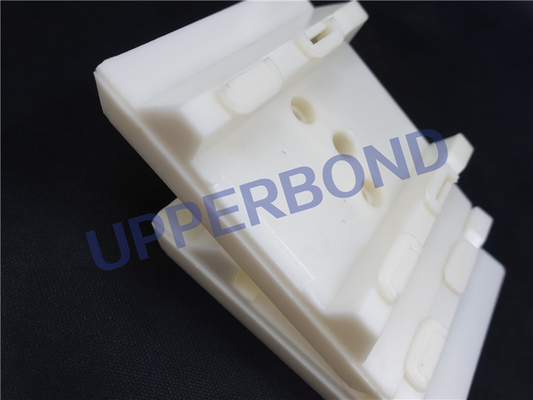

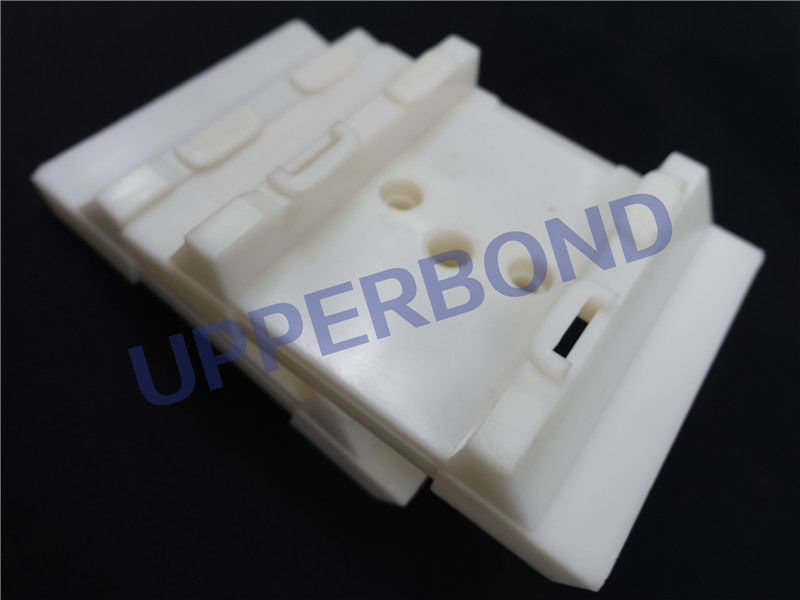

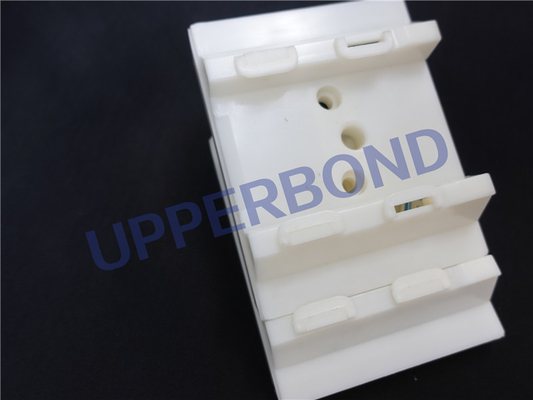

Regular Kretek Hard Printer Die Pocket Cigarette Packing Machine Parts
Cigarette Pack Pocket is a fast moving part of packing machine where printed hard cardboard paper will be folded into shape of cigarette packs.
Catalog Reference
| Item | Catalog No. | Part No. | Qty. |
| 1 | YB43A 4.3.1-7 | key | 1 |
| 2 | YB43A 4.4.1-2 | spring | 4 |
| 3 | YB43A 4.4.1-3 | Spring pin | 4 |
| 4 | YB43A 4.3.1-4 | locking nut | 2 |
| 5 | YB43A 4.3.1-8 | locking screw | 2 |
| 6 | YB43A 4.4.1-15 | key | 1 |
| 7 | YB43A 4.3.2-6 | flange | 1 |
| 8 | YB43A 4.3.2-8 | spacer | 1 |
| 9 | YB43A 4.4.1-14 | belt wheel | 1 |
| 10 | YB43A 4.3.2-4 | upper mover | 72 |
| 11 | YB43A 4.3.2-11 | box eJector | 36 |
| 12 | YB43A 4.3.2-12 | pressedblock | 36 |
| 13 | YB43A 4.3.2-13 | guide plate | 36 |
| 14 | YB43A 4.3.1-45 | cover | 1 |
| 15 | YB43A 4.4.1-23 | tension wheel shaft | 1 |
| 16 | YB43A 4.4.1-6 | press plate | 1 |
| 17 | YB43A 4.3.1-1 | shaft | 1 |
| 18 | YB43A 4.4.1-5 | shaft | 2 |
| 19 | YB43A 4.3.1-3 | nylon plug | 2 |
| 20 | YB43A 4.3.1-43 | plug | 1 |
| 21 | YB43A 4.3.1-6 | graduation cam | 1 |
| 22 | YB43A 4.4.1-21 | bracket | 1 |
| 23 | YB43A 4.3.2-10 | toothed belt wheel | 1 |
| 24 | YB43A 4.4.1-22 | tension wheel shaft | 2 |
| 25 | YB43A 4.3.1-5 | washer against slackness | 2 |
| 26 | YB43A 4.4.1-20 | tension wheel | 2 |
| 27 | YB43A 4.4.1-18 | tension wheel shaft | 1 |
| 28 | YB43A 4.3.1-44 | bearing case | 1 |
| 29 | YB43A 4.4.1-1 | lock block | 1 |
| 30 | YB43A 4.3.2-16 | bearing case | 2 |
| 31 | YB43A 4.3.2-3 | wheel shaft | 1 |
| 32 | YB43A 4.4.1-25 | tension wheel pedestal | 1 |
| 33 | YB43A 4.3.2-2 | belt wheel | 1 |
| 34 | YB43A 4.3.2-5 | groove tray | 72 |
| 35 | YB43A 4.4.1-7 | support block | 1 |
| 36 | YB43A 4.3.2-1 | flange | 24 |
| 37 | YB43A 4.4.1-11 | front shell | 1 |
| 38 | YB43A 4.3.2-9 | clamping plate | 1 |
| 39 | YB43A 4.4.1-13 | sleeve | 1 |
| 40 | YB43A 4.3.2-15 | regulating block | 2 |
| 41 | YB43A 4.3.2-14 | guide tray | 36 |
| 42 | YB43A 4.4.1-8 | block | 1 |
| 43 | YB43A 4.4.1-16 | cam | 1 |
| 44 | YB43A 4.4.1-9 | cylinder | 1 |
| 45 | YB43A 4.4.1-12 | back shell | 1 |
| 46 | YB43A 4.4.1-4 | plate | 1 |
| 47 | YB43A 4.4.1-17 | tension wheel | 3 |
| 48 | YB43A 4.4.1-10 | driving shaft | 1 |
| 49 | YB43A 4.4.1-24 | tension wheel pedestal | 1 |
| 50 | YB43A 4.4.1-19 | tension wheel shaft | 1 |
