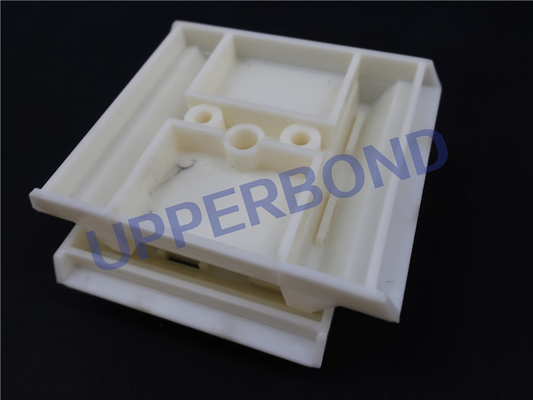

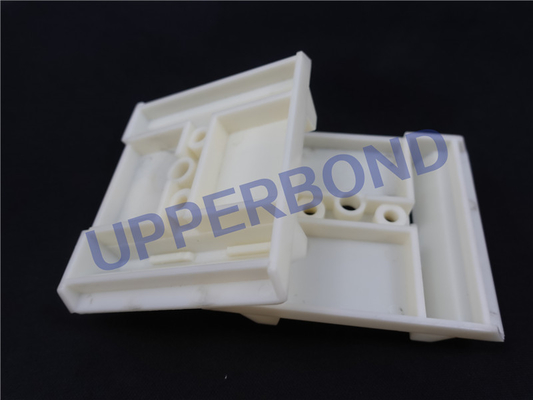

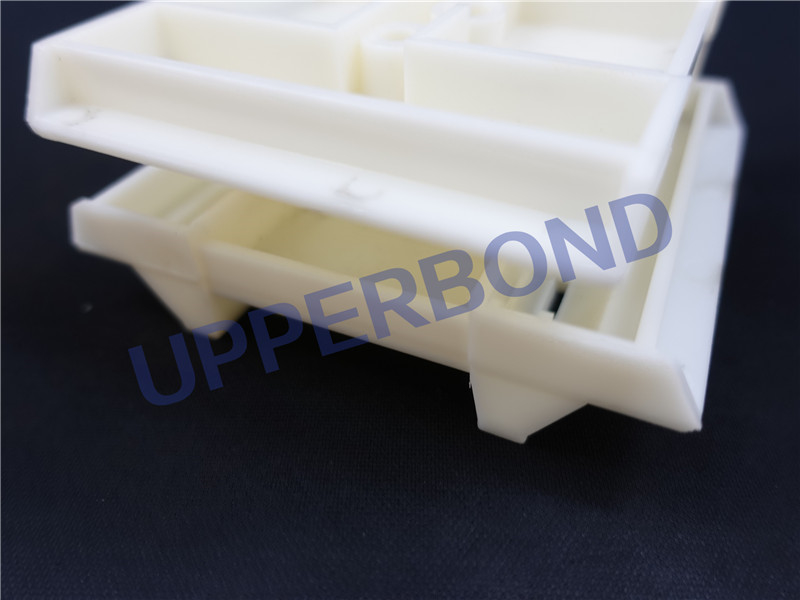

King Size Cigarette Printer Die Pocket HLP Cigarette Machine Parts

Name: King Size Cigarette Printer Die Pocket HLP Cigarette Machine Parts
Brand: HK UPPERBOND INDUSTRIAL LIMITED
SKU: Maker
Price: 1.00 USD
Availability: InStock

Brand Name:	Upperbond
Model Number:	Maker
MOQ:	800 pcs
Price:	Negotiable
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Freight:

Aramex,DHL,Fedex,TNT,etc

Hardness:

Greatly Enhanced

Cutting Material:

Filter Side

Cigarette Diameter:

5.4mm - 8.0mm

Brand:

Upperbond

Material:

Treated Stainless Steel

Packaging Details:

Carton

Supply Ability:

10000 pcs/month

Highlight:

Cigarette Printer Die Pocket

HLP Cigarette Printer Die Pocket

Product Description

King Size Cigarette Printer Die Pocket HLP Cigarette Machine Parts

Cigarette Pack Pocket is a fast moving part of packing machine where printed hard cardboard paper will be folded into shape of cigarette packs.

Catalog Reference

Item	Catalog No.	Part No.	Qty.
1	YB43A 4.3.1-8	locking screw	2
2	YB43A 4.4.1-2	spring	4
3	YB43A 4.3.2-4	upper mover	72
4	YB43A 4.3.1-4	locking nut	2
5	YB43A 4.4.1-15	key	1
6	YB43A 4.4.1-3	Spring pin	4
7	YB43A 4.3.1-7	key	1
8	YB43A 4.4.1-22	tension wheel shaft	2
9	YB43A 4.3.2-11	box eJector	36
10	YB43A 4.3.2-12	pressedblock	36
11	YB43A 4.3.2-13	guide plate	36
12	YB43A 4.3.1-5	washer against slackness	2
13	YB43A 4.4.1-6	press plate	1
14	YB43A 4.4.1-23	tension wheel shaft	1
15	YB43A 4.3.2-6	flange	1
16	YB43A 4.3.2-5	groove tray	72
17	YB43A 4.4.1-20	tension wheel	2
18	YB43A 4.4.1-14	belt wheel	1
19	YB43A 4.3.1-43	plug	1
20	YB43A 4.3.1-45	cover	1
21	YB43A 4.4.1-16	cam	1
22	YB43A 4.4.1-5	shaft	2
23	YB43A 4.3.1-44	bearing case	1
24	YB43A 4.3.1-6	graduation cam	1
25	YB43A 4.3.2-10	toothed belt wheel	1
26	YB43A 4.3.2-15	regulating block	2
27	YB43A 4.3.2-9	clamping plate	1
28	YB43A 4.4.1-4	plate	1
29	YB43A 4.4.1-13	sleeve	1
30	YB43A 4.4.1-1	lock block	1
31	YB43A 4.4.1-18	tension wheel shaft	1
32	YB43A 4.4.1-21	bracket	1
33	YB43A 4.3.1-1	shaft	1
34	YB43A 4.3.1-3	nylon plug	2
35	YB43A 4.3.2-8	spacer	1
36	YB43A 4.3.2-16	bearing case	2
37	YB43A 4.4.1-8	block	1
38	YB43A 4.4.1-9	cylinder	1
39	YB43A 4.3.2-1	flange	24
40	YB43A 4.3.2-3	wheel shaft	1
41	YB43A 4.3.2-2	belt wheel	1
42	YB43A 4.4.1-12	back shell	1
43	YB43A 4.4.1-24	tension wheel pedestal	1
44	YB43A 4.4.1-11	front shell	1
45	YB43A 4.4.1-10	driving shaft	1
46	YB43A 4.4.1-25	tension wheel pedestal	1
47	YB43A 4.4.1-7	support block	1
48	YB43A 4.4.1-17	tension wheel	3
49	YB43A 4.3.2-14	guide tray	36
50	YB43A 4.4.1-19	tension wheel shaft	1

King Size Cigarette Printer Die Pocket HLP Cigarette Machine Parts 0
