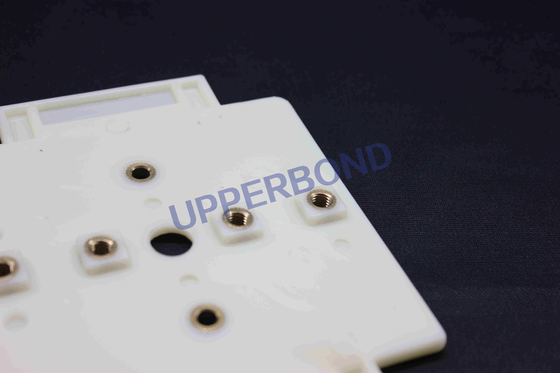

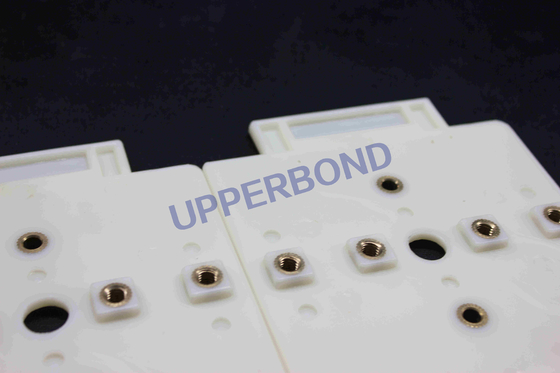

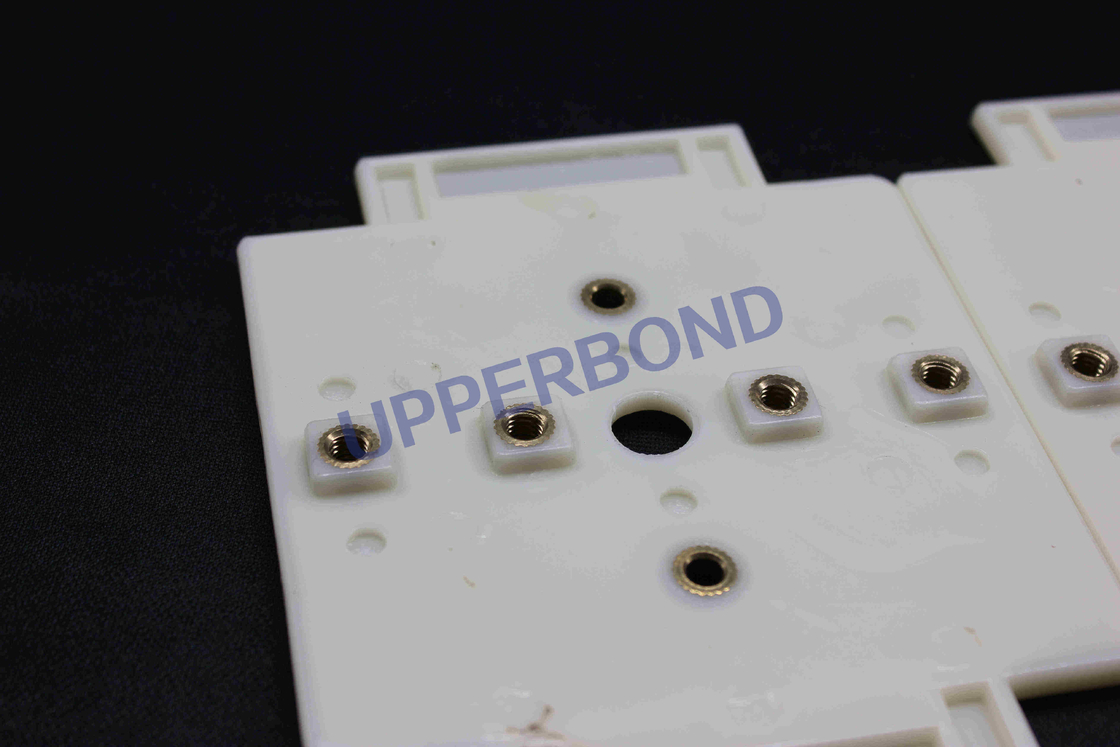

Hard Printer Mould Super Slims HLP Cigarette Machine Parts

Name: Hard Printer Mould Super Slims HLP Cigarette Machine Parts
Brand: HK UPPERBOND INDUSTRIAL LIMITED
SKU: Maker
Price: 1.00 USD
Availability: InStock

Brand Name:	Upperbond
Model Number:	Maker
MOQ:	2 pcs
Price:	Negotiable
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Other Models:

Skoda, CME, Sasib

Hardness:

Greatly Enhanced

Cigarettes Size:

King Size/ Super Slim / Nano

Sample:

Only When Charged

Application:

Applying Glue

Sea Transportation:

With Larger Orders Only

Packaging Details:

Carton

Supply Ability:

10000 pcs/month

Highlight:

HLP Cigarette Machine Pack Pocket

HLP Machine Cigarette Pack Pocket

Cigarette Machine Parts Pack Pocket

Product Description

Cigarette Pack Pocket

Cigarette Pack Pocket is a fast moving part of packing machine where printed hard cardboard paper will be folded into shape of cigarette packs.

Catalog Reference

Item	Catalog No.	Part No.	Qty.
1	YB43A 4.4.1-5	axis of guide	2
2	YB43A 4.4.1-6	platen	1
3	YB43A 4.4.1-7	seat support plate	1
4	YB43A 4.3.1-8	locking screw	2
5	YB43A 4.4.1-8	Crease Clamp	1
6	YB43A 4.4.1-9	Platen column	1
7	YB43A 4.3.2-5	groove tray	72
8	YB43A 4.3.2-6	flange	1
9	YB43A 4.3.2-8	spacer	1
10	YB43A 4.3.2-9	clamping plate	1
11	YB43A 4.3.1-6	graduation cam	1
12	YB43A 4.3.1-3	nylon plug	2
13	YB43A 4.3.1-44	bearing case	1
14	YB43A 4.3.1-45	cover	1
15	YB43A 4.3.2-1	flange	24
16	YB43A 4.3.2-2	belt wheel	1
17	YB43A 4.4.1-1	Auxiliary briquetting	1
18	YB43A 4.4.1-2	compression spring	4
19	YB43A 4.4.1-18	tensioner shaft	1
20	YB43A 4.4.1-19	tensioner shaft	1
21	YB43A 4.4.1-11	front cover	1
22	YB43A 4.4.1-12	Back cover	1
23	YB43A 4.4.1-10	drive shaft	1
24	YB43A 4.3.2-12	pressedblock	36
25	YB43A 4.4.1-24	tension bearing	1
26	YB43A 4.4.1-25	tension bearing	1
27	YB43A 4.3.1-7	key	1
28	YB43A 4.4.1-3	plunger spring pin	4
29	YB43A 4.4.1-4	quasi pressure plate	1
30	YB43A 4.3.1-4	locking nut	2
31	YB43A 4.3.1-5	washer against slackness	2
32	YB43A 4.3.2-10	toothed belt wheel	1
33	YB43A 4.3.2-11	box eJector	36
34	YB43A 4.3.2-13	guide plate	36
35	YB43A 4.3.2-14	guide tray	36
36	YB43A 4.3.2-15	regulating block	2
37	YB43A 4.3.2-3	wheel shaft	1
38	YB43A 4.3.2-16	bearing case	2
39	YB43A 4.4.1-13	Adjustment sleeve	1
40	YB43A 4.4.1-14	Platen pulley	1
41	YB43A 4.4.1-15	Key	1
42	YB43A 4.4.1-16	Platen Cam	1
43	YB43A 4.3.2-4	upper mover	72
44	YB43A 4.4.1-17	Tensioner	3
45	YB43A 4.3.1-43	plug	1
46	YB43A 4.3.1-1	cnm shaft	1
47	YB43A 4.4.1-20	Tension Pulley	2
48	YB43A 4.4.1-21	Platen bracket	1
49	YB43A 4.4.1-22	tensioner shaft	2
50	YB43A 4.4.1-23	tensioner shaft	1

Hard Printer Mould Super Slims HLP Cigarette Machine Parts 0
