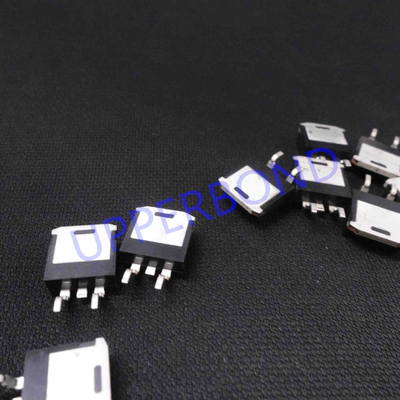

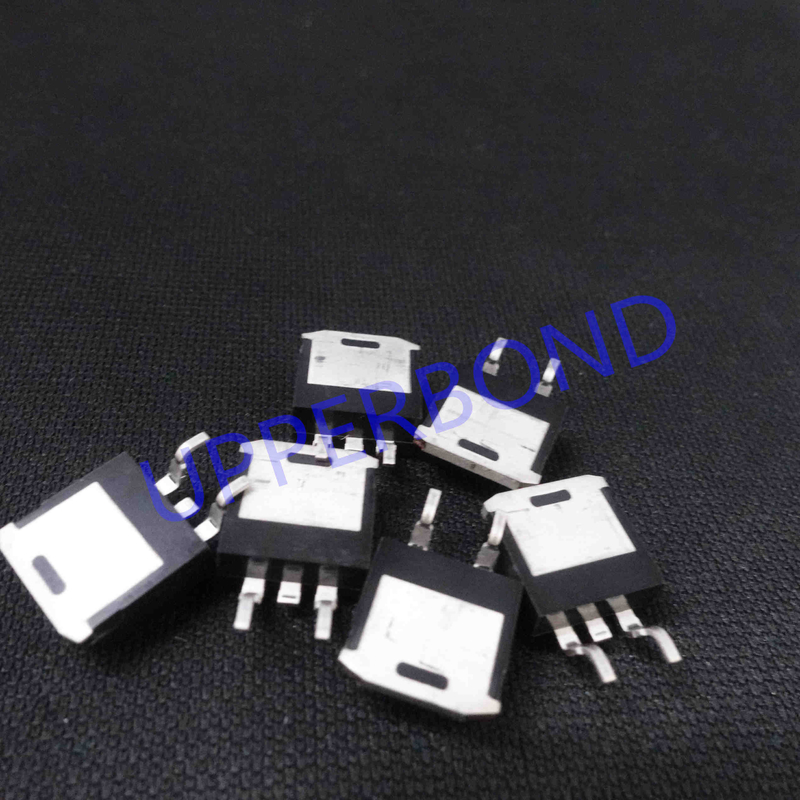

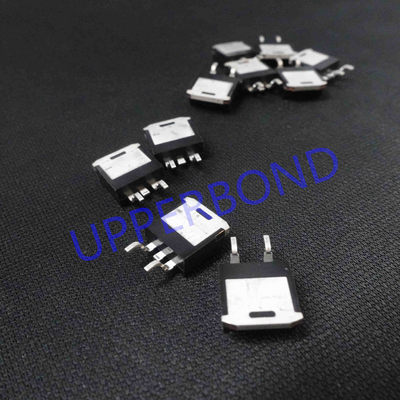

Queen Size Garant Kretek Switch Irfz44nl Protos Cigarette Machine Spare Parts

Queen Size Garant Kretek Switch Irfz44nl Protos Cigarette Machine Spare Parts

A transistor is a semiconductor device used to amplify or switch electronic signals and electrical power. Transistors are one of the basic building blocks of modern electronics. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit.

Mechanism

A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.

Voltage Drop

The image represents a typical bipolar transistor in a circuit. A charge will flow between emitter and collector terminals depending on the current in the base. Because internally the base and emitter connections behave like a semiconductor diode, a voltage drop develops between base and emitter while the base current exists. The amount of this voltage depends on the material the transistor is made from and is referred to as VBE.

CMOS

CMOS (complementary MOS) was invented by Chih-Tang Sah and Frank Wanlass at Fairchild Semiconductor in 1963. The first report of a floating-gate MOSFET was made by Dawon Kahng and Simon Sze in 1967. A double-gate MOSFET was first demonstrated in 1984 by Electrotechnical Laboratory researchers Toshihiro Sekigawa and Yutaka Hayashi
