Place of Origin: | China |
Brand Name: | Upperbond |
Certification: | CE, ISO |
Model Number: | Maker |
Minimum Order Quantity: | 20 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 10000 pcs/month |
Accuracy: | High And Stable | Sample: | Charged Only |
---|---|---|---|
Port Of Shipment: | Guangzhou, Shenzhen, Shanghai | Machine Models: | Mark9, Mark8, Skoda, Protos |
Cigarettes Size: | King Size/ Super Slim / Queen Size | Qty. On Each Machine: | 1 Or 2 |
High Light: | Tobacco Machinery Alloy Grinding Wheel,Cigarette Machine Alloy Grinding Wheel |

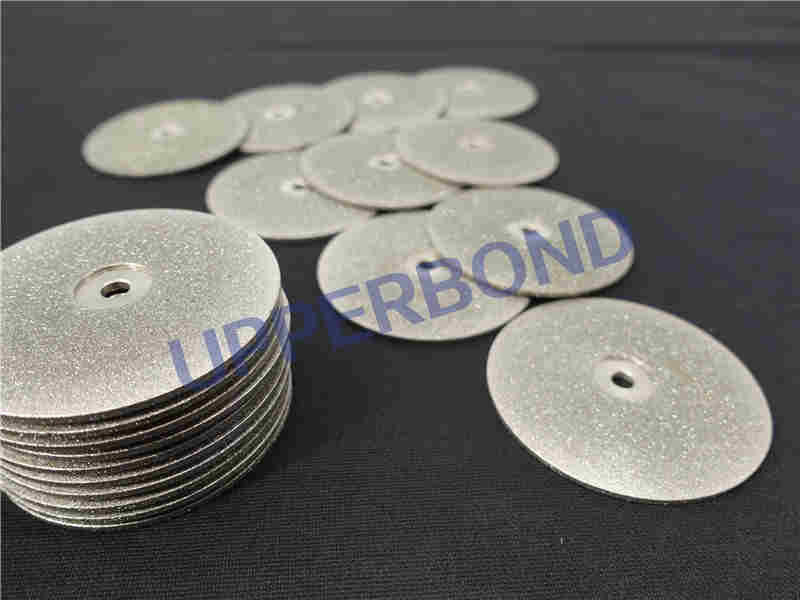

Frosted Cigarette Maker Alloy Grinding Wheel
Alloy Grinding Wheel is a component of cigarette making machines to sharpen cutting knives.
Specs
Model | Surface | Outer Diameter | Machine Model | Object |
UBG-03 | Frosted | 70mm | Mark8 | Long Knife |
UBG-04 | Frosted | 80mm | Mark8 | Long Knife |
UBG-05 | Frosted | 70mm | Mark9 | Long Knife |
UBG-07 | Frosted | 80mm | Mark9 | Long Knife |
UBG-09 | Screw | 70mm | Mark8 | Long Knife |
UBG-10 | Screw | 80mm | Mark8 | Long Knife |
UBG-11 | Screw | 70mm | Mark9 | Long Knife |
UBG-12 | Screw | 80mm | Mark9 | Long Knife |
Material Hardness
The abrasive aggregate is selected according to the hardness of the material being cut.
Aluminum oxide (A)
Silicon carbide (S)
Ceramic (C)
Diamond (D, MD, SD)
Cubic boron nitride (CBN)
Grinding wheels with diamond or CBN grains are called superabrasives. Grinding wheels with aluminum oxide (corundum), silicon carbide, or ceramic grains are called conventional abrasives.
Grain Spacing
Spacing or structure, from 1 (densest) to 17 (least dense). Density is the ratio of bond and abrasive to air space. A less-dense wheel will cut freely, and has a large effect on surface finish. It is also able to take a deeper or wider cut with less coolant, as the chip clearance on the wheel is greater.
Cylinder Or Wheel Ring
Cylinder wheels provide a large, wide surface with no center mounting support (hollow). They can be very large, up to 12" in width. They are used only in vertical or horizontal spindle grinders. Cylinder or wheel ring is used for producing flat surfaces, the grinding being done with the end face of the wheel.
