HK UPPERBOND INDUSTRIAL LIMITED
 |
| Place of Origin: | China |
| Brand Name: | Upperbond |
| Certification: | CE, ISO |
| Model Number: | Maker |
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 10000 pcs/month |
| Qty. On Each Machine: | 1 Or 2 | Filter Diameter: | 5.3 / 6.6 / 7.7 Mm |
|---|---|---|---|
| Sea Transportation: | Larger Orders Only | Port Of Shipment: | Guangzhou, Shenzhen, Shanghai |
| Machine Models: | Mark9, Mark8, Skoda, Protos | Cigarettes Size: | King Size/ Super Slim / Queen Size |
| High Light: | Tobacco Machinery Alloy Grinding Wheel,Cigarette Machine Alloy Grinding Wheel |
||

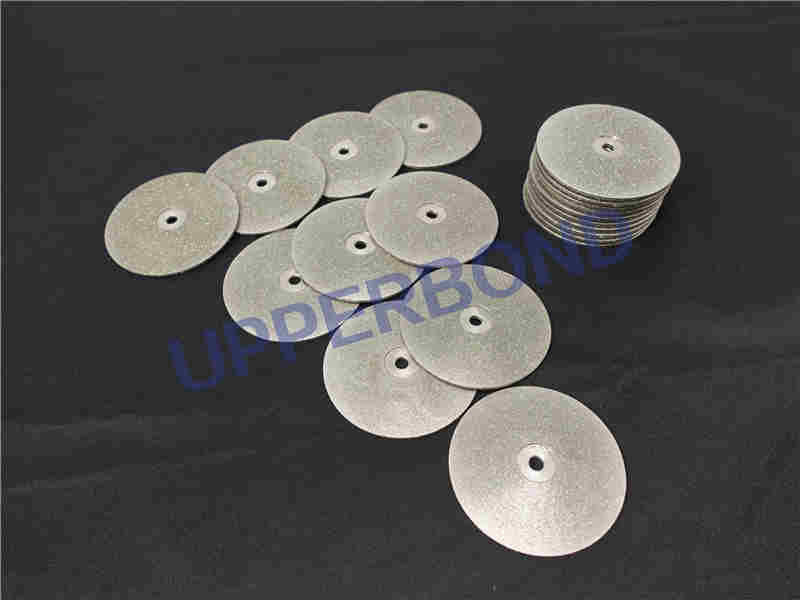

Mark 9 Rust - Proof Alloy Grinding Wheel
Alloy Grinding Wheel is a component of cigarette making machines to sharpen cutting knives.
Specs
| Model | Surface | Outer Diameter | Machine Model | Object |
| UBG-03 | Frosted | 70mm | Mark8 | Long Knife |
| UBG-04 | Frosted | 80mm | Mark8 | Long Knife |
| UBG-05 | Frosted | 70mm | Mark9 | Long Knife |
| UBG-07 | Frosted | 80mm | Mark9 | Long Knife |
| UBG-09 | Screw | 70mm | Mark8 | Long Knife |
| UBG-10 | Screw | 80mm | Mark8 | Long Knife |
| UBG-11 | Screw | 70mm | Mark9 | Long Knife |
| UBG-12 | Screw | 80mm | Mark9 | Long Knife |
Cylinder Or Wheel Ring
Cylinder wheels provide a large, wide surface with no center mounting support (hollow). They can be very large, up to 12" in width. They are used only in vertical or horizontal spindle grinders. Cylinder or wheel ring is used for producing flat surfaces, the grinding being done with the end face of the wheel.
Wheel Bond
How the wheel holds the abrasives; affects finish, coolant, and minimum/maximum wheel speed.
| Bond name | Bond symbol | Bond description |
| Vitrified | V | Glass-based; made via vitrification of clays and feldspars |
| Resinoid | B | Resin-based; made from plants or petroleum distillates |
| Silicate | S | Silicate-based |
| Shellac | E | Shellac-based |
| Rubber | R | Made from natural rubber or synthetic rubber |
| Metal | M | Made from various alloys |
| Oxychloride | O | Made from an oxohalide |
| Plated | P | Made by Electro / Electroless bonding of metal to hold abrasive |
Wheel grade
From A (soft) to Z (hard), determines how tightly the bond holds the abrasive. A to H for softer structure, I to P for moderately hard structure and Q to Z for hard structure. Grade affects almost all considerations of grinding, such as wheel speed, coolant flow, maximum and minimum feed rates, and grinding depth.
