| Brand Name: | UPPERBOND |
| Model Number: | HLP2 |
| MOQ: | 2 pcs |
| Price: | Negotiation |
| Delivery Time: | 3 - 5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
Horizontal Cigarette Dlivery Part HLP Cigarette Machine Parts Bar
Introduction

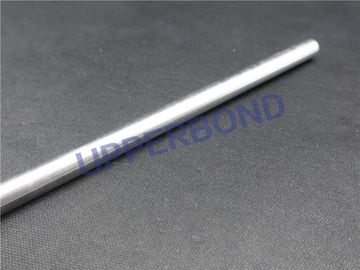

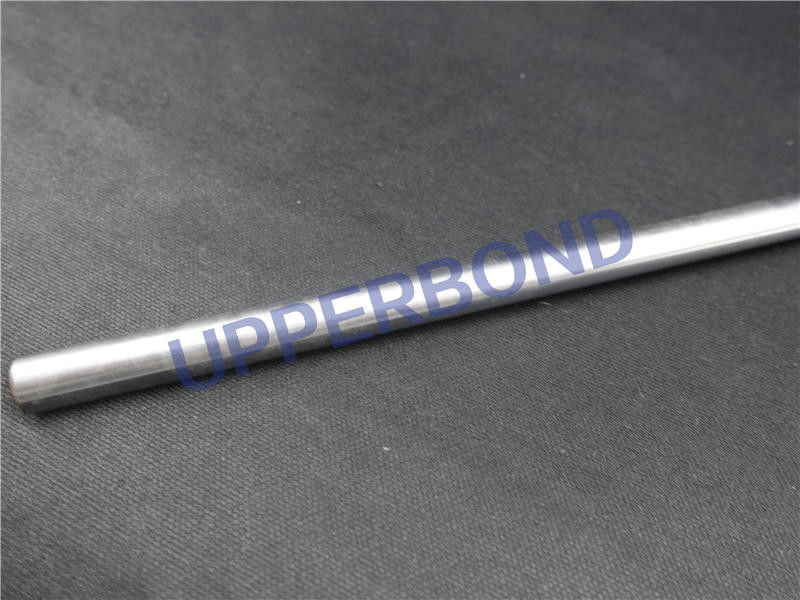

Upper Slide Bar is a Horizontal Cigarette Dlivery Part used to push and deliver the finished packet to next packing step. The drawing number is YB43A.5.4-3.
More Parts
| No. | Drawing number | Name |
| 1 | HLP2-YB43A.5.4-53 | Pressed spring |
| 2 | HLP2-YB43A.5.4-54 | Support arm |
| 3 | HLP2-YB43A.5.4-55 | Key |
| 4 | HLP2-YB43A.5.4-56 | Clutch body |
| 5 | HLP2-YB43A.5.4-57 | Clutch frame |
| 6 | HLP2-YB43A.5.4-58 | Lining |
| 7 | HLP2-YB43A.5.4-59 | Stop sleeve |
| 8 | HLP2-YB43A.5.4-60 | Sprocket |
| 9 | HLP2-YB43A.5.4-61 | Screw |
| 10 | HLP2-YB43A.5.4-64 | Plate |
| 11 | HLP2-YB43A.5.4-65 | Sleeve |
| 12 | HLP2-YB43A.5.4-66 | Bearing cover |
| 13 | HLP2-YB43A.5.4-67 | Shaft |
|
|
