|Place of Origin:||China|
|Minimum Order Quantity:||1 pcs|
|Delivery Time:||5-8 days|
|Payment Terms:||T/T, Western Union, MoneyGram, Paypal|
|Supply Ability:||300 pcs/month|
|Sea Transportation:||Large Order Only||Sample:||Charged Only|
|Service:||OEM / ODM||Material:||Metal|
|Special Size:||7.7*84mm / 7.8*97mm||Cigarette Rod Length:||57mm / 67mm / Customed|
electromagnetic tooth clutch,
miniature electromagnetic clutch
Electromagnetic clutch is a electronic component of cigarette making/packing machines that operates electrically but transmit torque mechanically.
This is why they used to be referred to as electro-mechanical clutches. Over the years, EM became known as electromagnetic versus electro-mechanical, referring more about their actuation method versus physical operation. Since the clutches started becoming popular over 60 years ago, the variety of applications and clutch designs has increased dramatically, but the basic operation remains the same today.
Single-face clutches make up approximately 90% of all electromagnetic clutch sales.

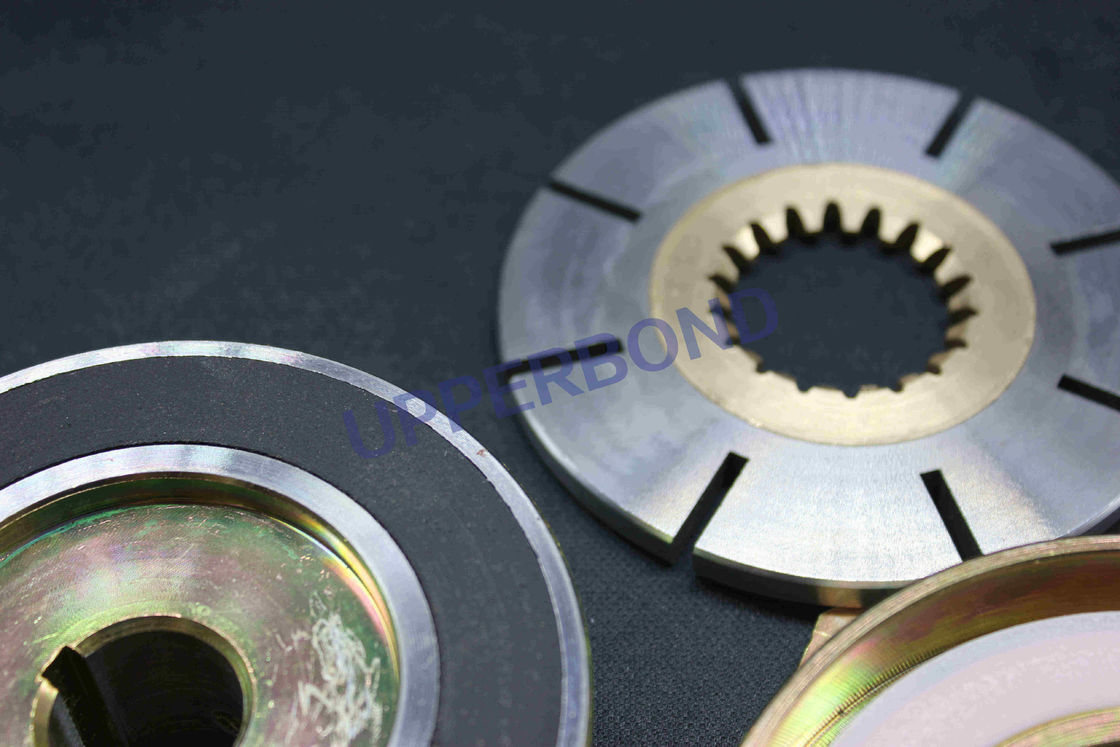

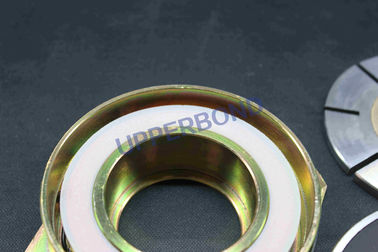

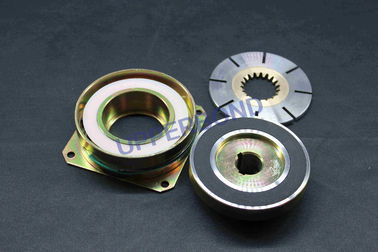

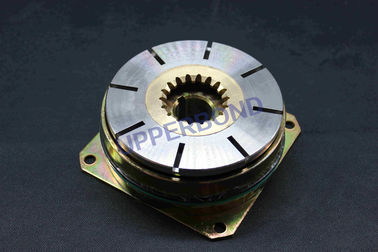

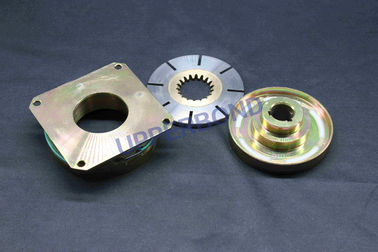

We provide electromagnetic clutches in photos for Molins Mark8 cigarette maker.
Electromagnetic clutches are most suitable for remote operation since no mechanical linkages are required to control their engagement, providing fast, smooth operation. However, because the activation energy dissipates as heat in the electromagnetic actuator when the clutch is engaged, there is a risk of overheating. Consequently, the maximum operating temperature of the clutch is limited by the temperature rating of the insulation of the electromagnet. This is a major limitation. Another disadvantage is higher initial cost.
When the clutch is actuated, current flows through the electromagnet producing a magnetic field. The rotor portion of the clutch becomes magnetized and sets up a magnetic loop that attracts the armature. The armature is pulled against the rotor and a frictional force is generated at contact. Within a relatively short time, the load is accelerated to match the speed of the rotor, thereby engaging the armature and the output hub of the clutch. In most instances, the rotor is constantly rotating with the input all the time.
When CIF or CFR terms are applied to a trade of lesser amount, taking delivery time, cost, risk, custom clearance proficiency, and other factors into account, we choose express among DHL, UPS, TNT, Aramex, Fedex, SF Express to deliver your goods.
For any other concerns involved in shipment issue, also please contact with us beforehand.
Contact Person: Boris
