Cooling Improved Accurate Molins Mark 8 Cigarette Maker 18 Teeth Electromagnetic Clutch

Electromagnetic Clutch

Electromagnetic clutch is a electronic component of cigarette making/packing machines that operates electrically but transmit torque mechanically.

Electro-mechanical Clutch

This is why they used to be referred to as electro-mechanical clutches. Over the years, EM became known as electromagnetic versus electro-mechanical, referring more about their actuation method versus physical operation. Since the clutches started becoming popular over 60 years ago, the variety of applications and clutch designs has increased dramatically, but the basic operation remains the same today.

Single-face clutches make up approximately 90% of all electromagnetic clutch sales.

Machines Applicable:

We provide electromagnetic clutches in photos for Molins Mark8 cigarette maker.

Function:

Electromagnetic clutches are most suitable for remote operation since no mechanical linkages are required to control their engagement, providing fast, smooth operation. However, because the activation energy dissipates as heat in the electromagnetic actuator when the clutch is engaged, there is a risk of overheating. Consequently, the maximum operating temperature of the clutch is limited by the temperature rating of the insulation of the electromagnet. This is a major limitation. Another disadvantage is higher initial cost.

Customization:

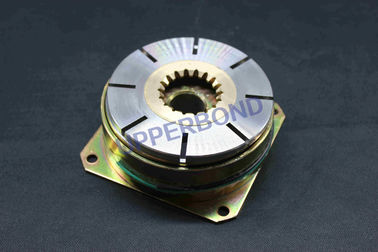

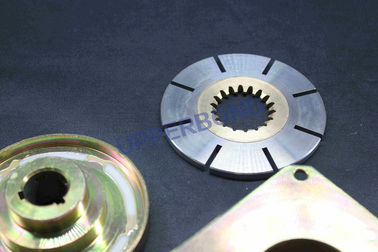

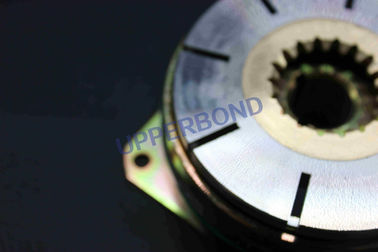

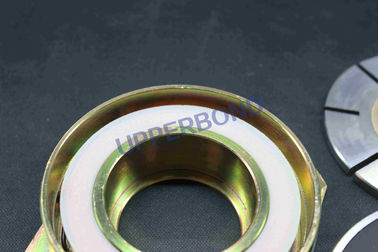

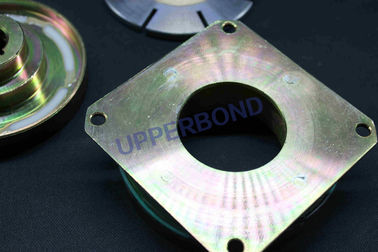

Electromagnetic clutch shown in pictures are for Molins Mark8 cigarette making machines. Please provide detailed info. to us if your desired specs is different.

Depending on machine models and other factors, time needed for manufacturing can vary. Thus details of product and relative lead time must be negotiated beforehand to avoid any discordance.

Disengagement

When current is removed from the clutch, the armature is free to turn with the shaft. In most designs, springs hold the armature away from the rotor surface when power is released, creating a small air gap.
