Protos Cigarette Machine Spare Parts
Created with Pixso. CE Protos Cigarette Machine Spare Parts Zirconium Dioxide Ceramic Scraper For High Speed Cigarette Maker

CE Protos Cigarette Machine Spare Parts Zirconium Dioxide Ceramic Scraper For High Speed Cigarette Maker

Brand Name: Upperbond
Model Number: Maker
MOQ: 20 pcs
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
CE, ISO
Cigarette Rod Length:
57mm / 67mm / Customed
Hardness:
Harder Than Steel
Sea Transportation:
Large Order Only
Cigarettes Size:
King Size/ Super Slim / Nano
Material:
Ceram
Special Size:
7.7*84mm / 7.8*97mm
Packaging Details:
Carton
Supply Ability:
10000 pcs/month
Highlight:

protos rolling drum

,

conveyor guide rollers

Product Description

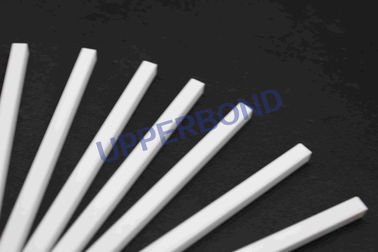

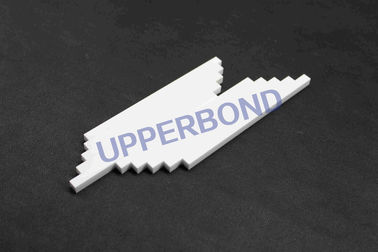

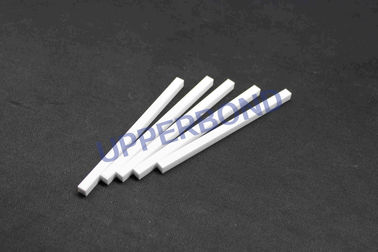

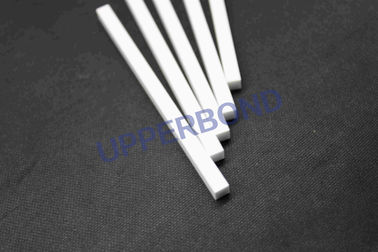

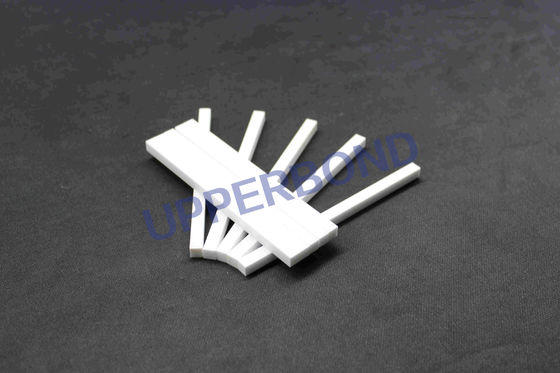

Ceramic Fluffing Knife

Ceramic Fluffing Knife is a component consisted in high-speed cigarette machines for fluffing tipping paper so that they can be glued better and thus connected better to the cigarette rod.



Material



A ceramic knife is a knife designed with a ceramic blade typically made from zirconium dioxide (ZrO2; also known as zirconia). These knife blades are usually produced through the dry-pressing and firing of powdered zirconia using solid-state sintering. It is 8.5 on the Mohs scale of mineral hardness, compared to 4.5 for normal steel and 7.5 to 8 for hardened steel and 10 for diamond. The resultant blade has a hard edge that stays sharper for longer when compared to conventional steel knives. Whilst the edge is harder than a steel knife, it is less tough and thus more brittle. The ceramic blade is sharpened by grinding the edges with a diamond-dust-coated grinding wheel.



Zirconium oxide



Zirconium oxide is used due to its polymorphism. It exists in three phases: monoclinic, tetragonal and cubic. Cooling to the monoclinic phase after sintering causes a large volume change, which often causes stress fractures in pure zirconia. Additives such as magnesia, calcia and yttria are used in the manufacture of the knife material to stabilize the high-temperature phases and minimize this volume change. The highest strength and toughness is produced by the addition of 3 mol% yttrium oxide yielding partially stabilized zirconia. This material consists of a mixture of tetragonal and cubic phases with a bending strength of nearly 1,200 MPa. Small cracks allow phase transformations to occur, which essentially close the cracks and prevent catastrophic failure, resulting in a relatively tough ceramic material, sometimes known as TTZ (transformation-toughened zirconia).



Properties



Ceramic knives are substantially harder than steel knives, will not corrode in harsh environments, are non-magnetic, and do not conduct electricity at room temperature. Because of their resistance to strong acid and caustic substances, and their ability to retain a cutting edge longer than forged metal knives,[citation needed] ceramic knives are better suited for slicing boneless meat, vegetables, fruit and bread. Since ceramics are brittle, blades may break if dropped on a hard surface although improved manufacturing processes have reduced this risk. They are also unsuitable for chopping through bones, or frozen foods, or in other applications which require prying, which may result in chipping. Several brands now offer either a black-coloured or a designed blade made through an additional hot isostatic pressing step, which increases the toughness.



Freight:



When CIF or CFR terms are applied to a trade of lesser amount, taking delivery time, cost, risk, custom clearance proficiency, and other factors into account, we choose express among DHL, UPS, TNT, Aramex, Fedex, SF Express to deliver your goods.



For any other concerns involved in shipment issue, also please contact with us beforehand.
