Place of Origin: | China |
Brand Name: | Upperbond |
Certification: | CE, ISO |
Model Number: | Macker |
Minimum Order Quantity: | 20 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | carton |
Delivery Time: | 5-8 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50,000 pcs/month |
Material: | Nylon | Color: | White |
---|---|---|---|
Certificate: | IOS9001 | Application: | Transfer Cut Tobacco |
Color: | White With Red Line | Port: | Guangzhou |
Highlight: | cog belt system,cigarette cutting blade |
Tough And Tensile Nylon Tape Attaching Cut Tobacco With Vacuum Pressure For Cigarette Making Machine

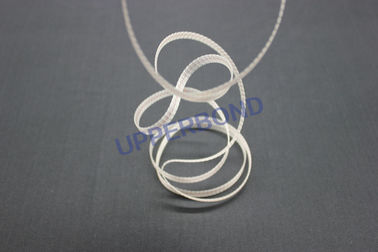

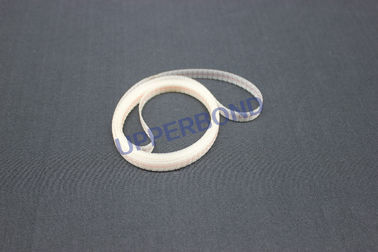

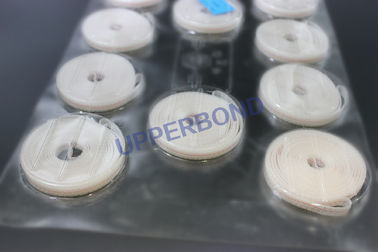

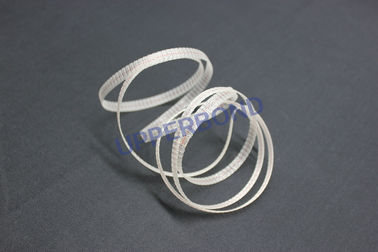

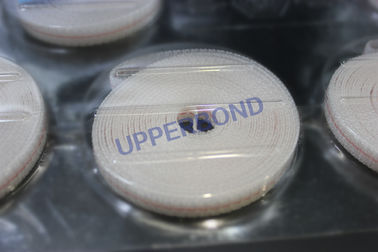

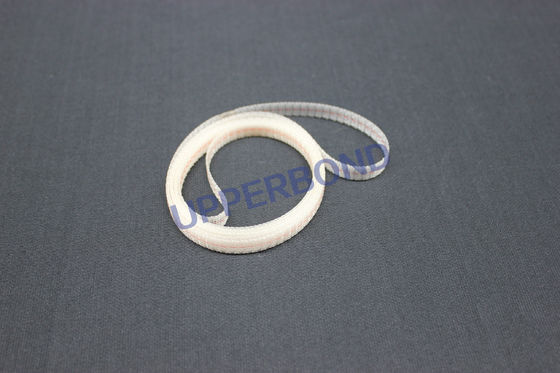

Nylon Tape
Nylon tape is assembled in cigarette making machines to attach and transfer cut tobacco before releasing it on cigarette paper.
Specifications:
Machine | Sizes | Use |
GARANT 1 B | 1265 x 8.1 | Attach Cut Tobacco |
GARANT 1 B | 1425 x 8.1 | Attach Cut Tobacco |
Sasib SIGMA | 2309 X 10 | Attach Cut Tobacco |
Decoufle LOG | 2955 x 8.2 or 10.2 | Attach Cut Tobacco |
Decoufle LOG-A | 3075 x 8.2,10.2 | Attach Cut Tobacco |
MARK-8, 8D, 8DK, | 3200 x 10,12 | Attach Cut Tobacco |
MARK-8, 8D, 8DK, | 3280 X 10,12 | Attach Cut Tobacco |
LOGA, LOGA 3, LOGA 3D, | 3550 x 8.2 or 9.2 | Attach Cut Tobacco |
Protos 70,80,90 | 4020 x 8.2 or 9.2 | Attach Cut Tobacco |
MARK 9,9-5,9SM,9D | 4210 x 8.2 or 9.2 | Attach Cut Tobacco |
MARK 9,9-5,9SM,9D | 4218 X 10 | Attach Cut Tobacco |
MARK 9,9-5,9SM,9D | 4300 X 7.7 | Attach Cut Tobacco |
PROTOS 90S, 100 | 4630 x 9.2 | Attach Cut Tobacco |
GD 1-2-1 | 4840 x 8.2 or 9.0 | Attach Cut Tobacco |
PROTOS 2 | 5085 x 9.2 | Attach Cut Tobacco |
MARK 10,10S, | 5610 x 10 | Attach Cut Tobacco |
PASSIM | 5710 x 10 | Attach Cut Tobacco |
For need of any other specifications, contact with us for customization.
Detailed Usage:
Nylon tape is a common wear part of cigarette making machines. Although in some Chinese-made machine it is replaced by tobacco band(aka. steal band). With the help of a vacuum pressure the input cut tobacco is attached to the nylon tape and processed and transferred to the cigarette tongue part where it is released onto the cigarette paper and rolled into rods.
Features:
Tough and Tensile
High Performance
Condition: Brand New
Long Functional Life
Reliable
High Temperature Tolerance
High Fracture Strength
Corrosion proof
Machines Applicable:
We provide nylon tapes for basically all types of cigarette making machines. Yet for tapes used in below makers and packers, we tend to reserve more in stock, samples and goods alike.
Maker Type:
MK8/MK9
Protos(70/90/90E)
Passim(7000/8000/10000)
For other types, makers of higher capacities or less common types, including MK9-5, MK10, GD121, GD121 Plus, GD121 Plus Plus, Passim 12000, please contact with us for a certain lead time and delivery details.
Shipping Terms:
Preferred: EXW, FOB, CIF, CFR
It had always been our first priority to provide quotation with EXW terms applied price. Still for final shipment the other 3 sets of shipping terms are most recommended. We would like to have the export clearance process done by ourselves since normally we know China’s customs more than our clients do. Also the tax rebate procedure can be more or less simplified if we clear the custom on our own.
For any other sets of shipping terms especially those where export clearance is no more our obligation to see to, please contact with us for further detail negotiation, so as to avoid any discordance.
Port of Departure:
For goods of lesser amount and weight, or goods we have in stock, usually they get loaded on board via Guangzhou custom. That is, if you order several pieces of machine accessories of regular specifications, more likely than not your cargo will depart from Guangzhou custom.
For larger orders, unless requested otherwise, shipments will set sail from the nearest port of the manufacturing plant(s). Our plants locates mostly in mainland China, while our suppliers worldwide. So it is possible you will have cargoes from any port of mainland China, India, Laos or even Europe.
Contact Person: Winnie
Tel: +8613763302491
