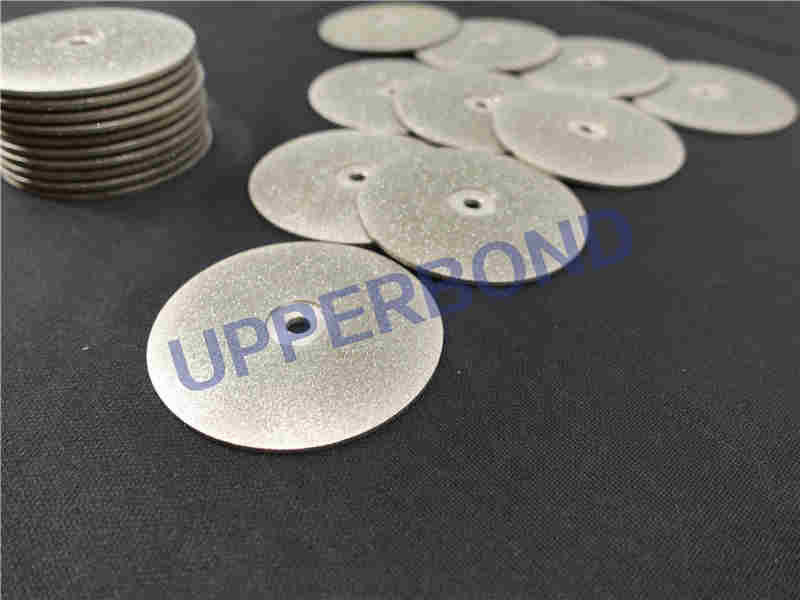

Mark 9 Low honing Alloy Grinding Wheel

Mark 9 Low honing Alloy Grinding Wheel

Alloy Grinding Wheel is a component of cigarette making machines to sharpen cutting knives.

Specs

Tapered Wheel

A straight wheel that tapers outward towards the center of the wheel. This arrangement is stronger than straight wheels and can accept higher lateral loads. Tapered face straight wheel is primarily used for grinding thread, gear teeth.

Diamond Wheels

Diamond wheels are grinding wheels with industrial diamonds bonded to the periphery.

They are used for grinding extremely hard materials such as carbide cutting tips, gemstones or concrete. The saw pictured to the right is a slitting saw and is designed for slicing hard materials, typically gemstones.

Use

To use the grinding wheel it must first be clamped to the grinding machine. The wheel type (e.g. cup or plain wheel below) fit freely on their supporting arbors, the necessary clamping force to transfer the rotary motion being applied to the wheels side by identically sized flanges (metal discs). The paper blotter shown in the images is intended to distribute this clamping force evenly across the wheels surface.
