Place of Origin: | China |
Brand Name: | Upperbond |
Certification: | CE, ISO |
Model Number: | Macker/Packer/Primary Line |
Minimum Order Quantity: | 10 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 50,000 pcs/month |
Food Grade Contact(Y/N): | Y | Material: | Polyurethane |
---|---|---|---|
Composite Material: | Polyester | Material Available: | Polyester Cotton |
Surface: | Smooth / Matte | Optional Surface: | Pattern |
High Light: | steel inner frame cutter,Cigarette Packing Line Conveyor Belt |

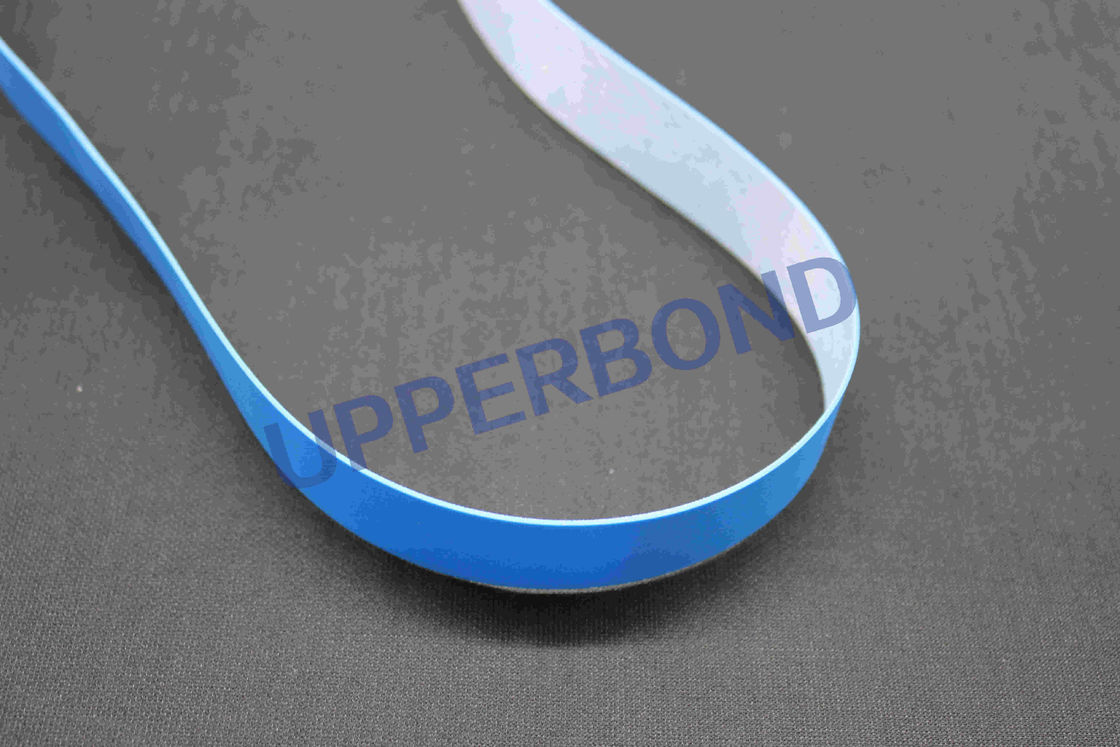

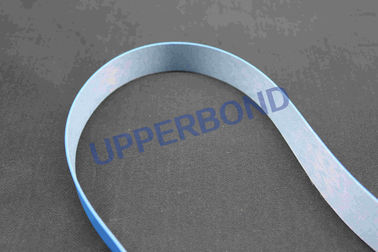

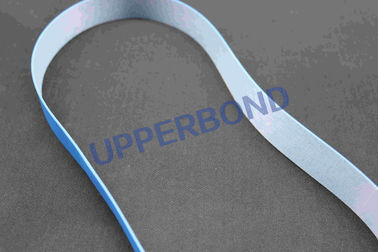

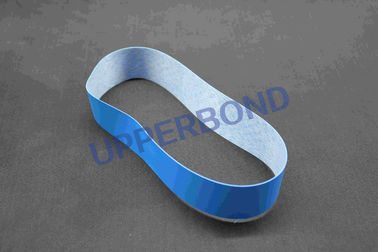

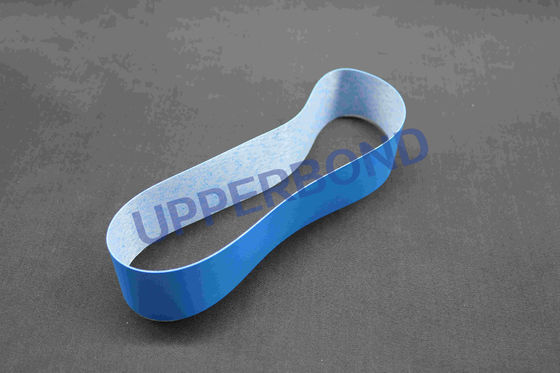

Flat Belt
Flat belt in cigarette machinery are mostly used as conveyor belts or for power transmission.
Material:
Type | Surface Material | Tensile Material | Surface | Hardness |
1 | Polyurethane | Polyester | Smooth / Matte / Pattern | 70 - 95 Shore A |
2 | Polyurethane | None | Smooth / Matte / Pattern | 70 - 95 Shore A |
3 | Polyurethane | None | Grinding Surface | 70 - 82 Shore A |
4 | Polyurethane | None | Grinding Surface | 70 - 82 Shore A |
5 | Polyurethane | Cotton | Smooth / Matte / Pattern | 70 - 90 Shore A |
Working With Pulleys
In a two pulley system, the belt can either drive the pulleys normally in one direction (the same if on parallel shafts), or the belt may be crossed, so that the direction of the driven shaft is reversed (the opposite direction to the driver if on parallel shafts). As a source of motion, a conveyor belt is one application where the belt is adapted to carry a load continuously between two points. The belt drive can also be used to change the speed of rotation, either up or down, by using different sized pulleys.
Flat Belt
Flat belts were traditionally made of leather or fabric. Today most are made of rubber or synthetic polymers. Grip of leather belts is often better if they are assembled with the hair side (outer side) of the leather against the pulley, although some belts are instead given a half-twist before joining the ends (forming a Möbius strip), so that wear can be evenly distributed on both sides of the belt.
