Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion

Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion

  • Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion
  • Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion
  • Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion
  • Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion
  • Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion
Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion
Product Details:
Place of Origin: China
Brand Name: Upperbond
Certification: CE, ISO
Model Number: Maker
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Brand: Upperbond Application: Fluffing Tipping Paper
Machine Applicable: Maker Freight: Fedex,Aramex,UPS,DHL,etc
Condition: Brand New Customizable(Y/N): Y
High Light:

cog belt system

,

cigarette cutting blade

Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion

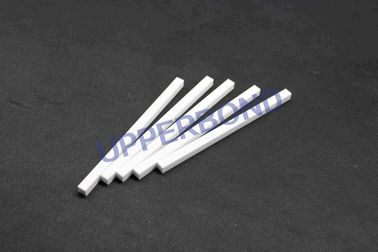

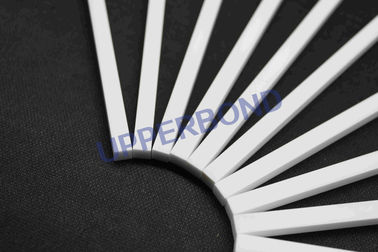

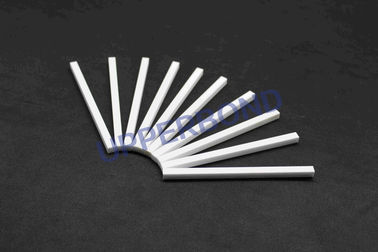

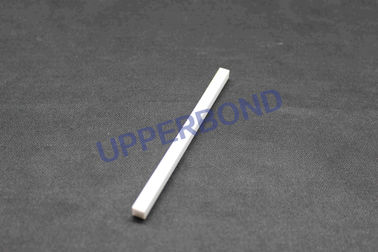

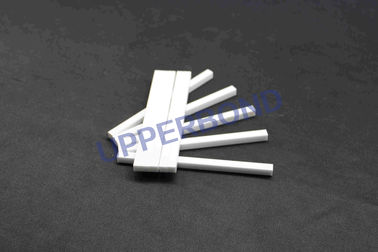

Ceramic Fluffing Knife

Ceramic Fluffing Knife is a component consisted in high-speed cigarette machines for fluffing tipping paper so that they can be glued better and thus connected better to the cigarette rod.



Material



A ceramic knife is a knife designed with a ceramic blade typically made from zirconium dioxide (ZrO2; also known as zirconia). These knife blades are usually produced through the dry-pressing and firing of powdered zirconia using solid-state sintering. It is 8.5 on the Mohs scale of mineral hardness, compared to 4.5 for normal steel and 7.5 to 8 for hardened steel and 10 for diamond. The resultant blade has a hard edge that stays sharper for longer when compared to conventional steel knives. Whilst the edge is harder than a steel knife, it is less tough and thus more brittle. The ceramic blade is sharpened by grinding the edges with a diamond-dust-coated grinding wheel.



Zirconium oxide



Zirconium oxide is used due to its polymorphism. It exists in three phases: monoclinic, tetragonal and cubic. Cooling to the monoclinic phase after sintering causes a large volume change, which often causes stress fractures in pure zirconia. Additives such as magnesia, calcia and yttria are used in the manufacture of the knife material to stabilize the high-temperature phases and minimize this volume change. The highest strength and toughness is produced by the addition of 3 mol% yttrium oxide yielding partially stabilized zirconia. This material consists of a mixture of tetragonal and cubic phases with a bending strength of nearly 1,200 MPa. Small cracks allow phase transformations to occur, which essentially close the cracks and prevent catastrophic failure, resulting in a relatively tough ceramic material, sometimes known as TTZ (transformation-toughened zirconia).



Properties



Ceramic knives are substantially harder than steel knives, will not corrode in harsh environments, are non-magnetic, and do not conduct electricity at room temperature. Because of their resistance to strong acid and caustic substances, and their ability to retain a cutting edge longer than forged metal knives,[citation needed] ceramic knives are better suited for slicing boneless meat, vegetables, fruit and bread. Since ceramics are brittle, blades may break if dropped on a hard surface although improved manufacturing processes have reduced this risk. They are also unsuitable for chopping through bones, or frozen foods, or in other applications which require prying, which may result in chipping. Several brands now offer either a black-coloured or a designed blade made through an additional hot isostatic pressing step, which increases the toughness.



Zirconium Dioxide (ZrO2)



Zirconium dioxide (ZrO2), sometimes known as zirconia (not to be confused with zircon), is a white crystalline oxide of zirconium. Its most naturally occurring form, with a monoclinic crystalline structure, is the mineral baddeleyite. A dopant stabilized cubic structured zirconia, cubic zirconia, is synthesized in various colours for use as a gemstone and a diamond simulant.



Harder Than Steel Fluffing Knife Made Of Ceram To Scrape Tipping Paper Fluffy Achieving Better Adhesion 0
